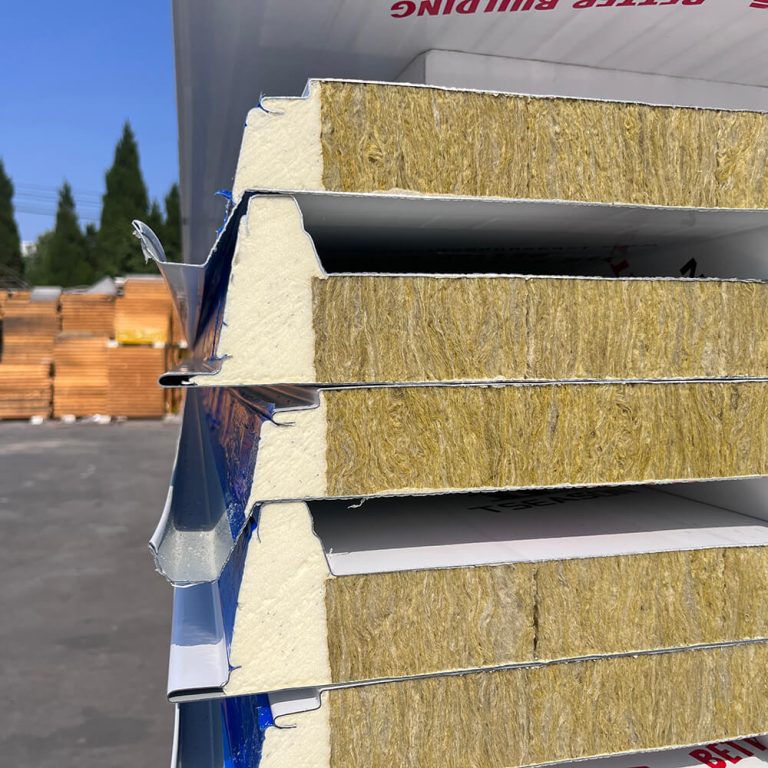

Tseason 50mm insulated roof panels offer various colors and options, including energy-efficient polyurethane and fireproof Rockwool glass wool composite panels. In today's era of high energy costs, our highly insulated roof panels with rigid polyurethane foam cores are the preferred choice for meeting the highest insulation and moisture protection demands, ensuring your building's long-term sustainability.
In addition, the high stiffness and load-bearing capacity of the Metal Sandwich Panel Roof are outstanding advantages, enabling wider spans. The panels' large length and light weight make economical, fast, and energy-efficient construction possible.
| Specification(mm) | Standard Panel Width | 1000 | |||
| Panel Length | 2000≤L≤15000 | ||||
| Thickness(mm) | Standard Panel Thickness | 45/50/60/75/80/100 | |||
| Outer Steel Sheet | 0.4-0.8 | ||||
| Inner Steel | Sheet | 0.4-0.9 | |||
| Steel Sheet Coating | PVDF/hi Resistant PE/Silicon Modified PE/PE(Coating Thickness ≥20μm) | ||||
| Core Material | Rock wool | Glass Fiber | PU(polyurethane) PIR(polyisocyanurate) | ||
| Core Average Density(kg/m³) | 120 64 42 48 | ||||
The roof waterproof cap is made of polycarbonate
customization, not only has a high-impact strength
excellent thermal stability and creep resistance, but
also anti-ultraviolet radiation, aging resistance,
Electrical insulation and has good flame retardancy.
Tseason has its own IBIM(Building Information Modeling) Objects, which can provide you with a crucial and even mandated process to ensure building planning, design, and construction are highly efficient and collaborative.
